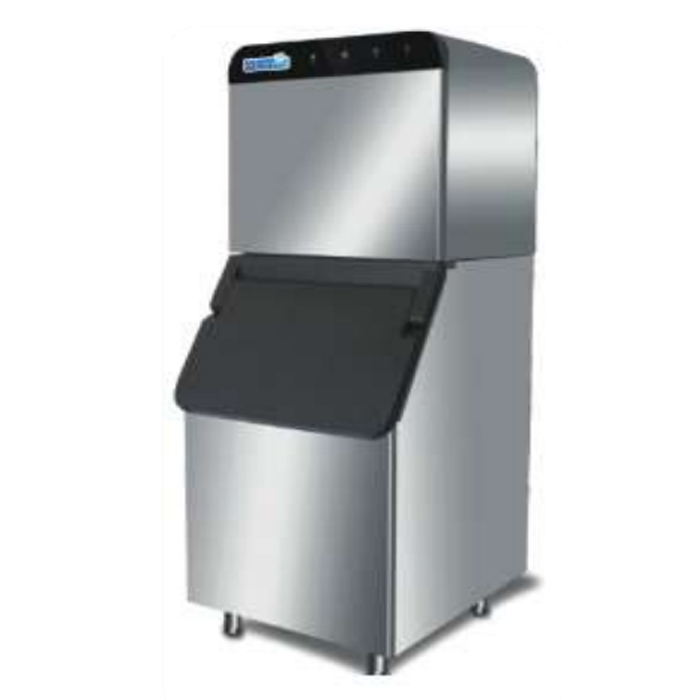

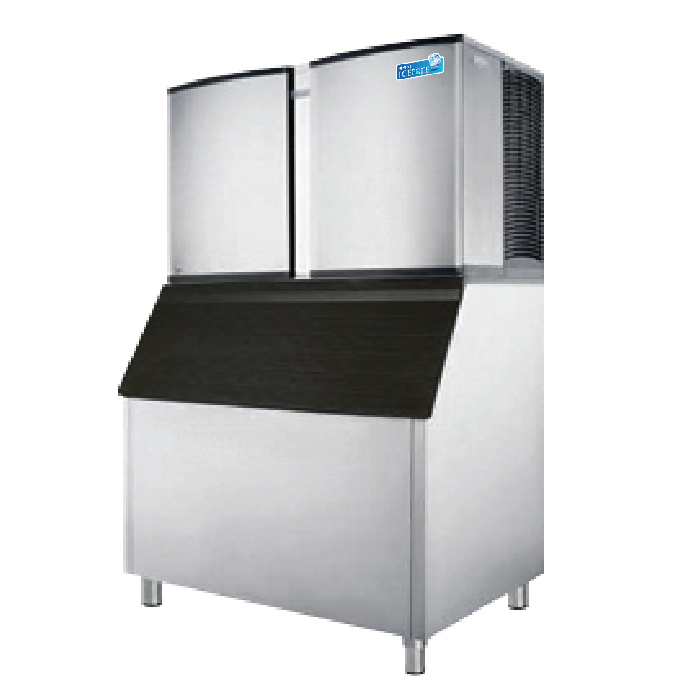

ICM 400
ICM 700
ICM 900
ICM 1200
ICM 1900
| Product Code | IC 400 | IC 700 | IC 900 | IC 1200 | IC 1900 |
|---|---|---|---|---|---|
| Ice Making Capacity * |
180KG /24 HRS - Manufacturer Specifications * Water temperature 10c * Ambient temperature 21c |
230KG /24 HRS - Manufacturer Specifications * Water temperature 10c * Ambient temperature 21c |
380KG /24 HRS - Manufacturer Specifications * Water temperature 10c * Ambient temperature 21c |
455KG /24 HRS - Manufacturer Specifications * Water temperature 10c * Ambient temperature 21c |
820KG /24 HRS - Manufacturer Specifications * Water temperature 10c * Ambient temperature 21 |
| Ice Production | 180KG | 280KG | 380KG | 490KG | 700KG |
| Ice Storage Capacity | 195KG | 331KG | 331KG | 331KG | 470KG |
| Voltage | 220V | 220V | 220V | 220V | 380V |
| Power | 860 W | 1400 W | 2300 W | 2500 W | 4000 W |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Refrigerant | R404 A | R404 A | R404 A | R404 A | R404 A |
| Dimension (WxLxH) | 560 x 900 x 1640 + 100mm | 760 x 900 x 1640 + 130mm | 760 x 900 x 1825 + 100mm | 760 x 900 x 1825 + 130mm | 1220 x 950 x 2030+130mm |
| Shape of Ice | Ice Cube or Half Dice | Ice Cube or Half Dice | Ice Cube or Half Dice | Ice Cube or Half Dice | Ice Cube or Half Dice |
| Cooling system | Air or Water Cooling | Air or Water Cooling | Air or Water Cooling | Air or Water Cooling | Air or Water Cooling |
| Isolator Needed | ✘ | ✘ | ✔ | ✔ | ✔ |
Features
- High Quality Certificate of European CF & American U.L
- Auto-Alert indicator lights - communicater about operating status : a diagnostic LED light guides the troubleshooting process and helps decisions regarding opening a service call.
- Front-facing Evaporator - Ice forming process inspection and routine cleaning operations may be accomplished simply removing the front panel.
- Hand-removable water distribution tube - routine cleaning has never been so easy !
- Embedded antimicrobial- Ag-lon antimicrobial is present in selected food-zone components
- External Components- All external panel components are crafted for optimal aesthetic appeal through superior fit and finish.
- Reusable air filter easily removable from the outside for ease of cleaning (in air-cooled models)
- CFC-free R-404a Refrigerant

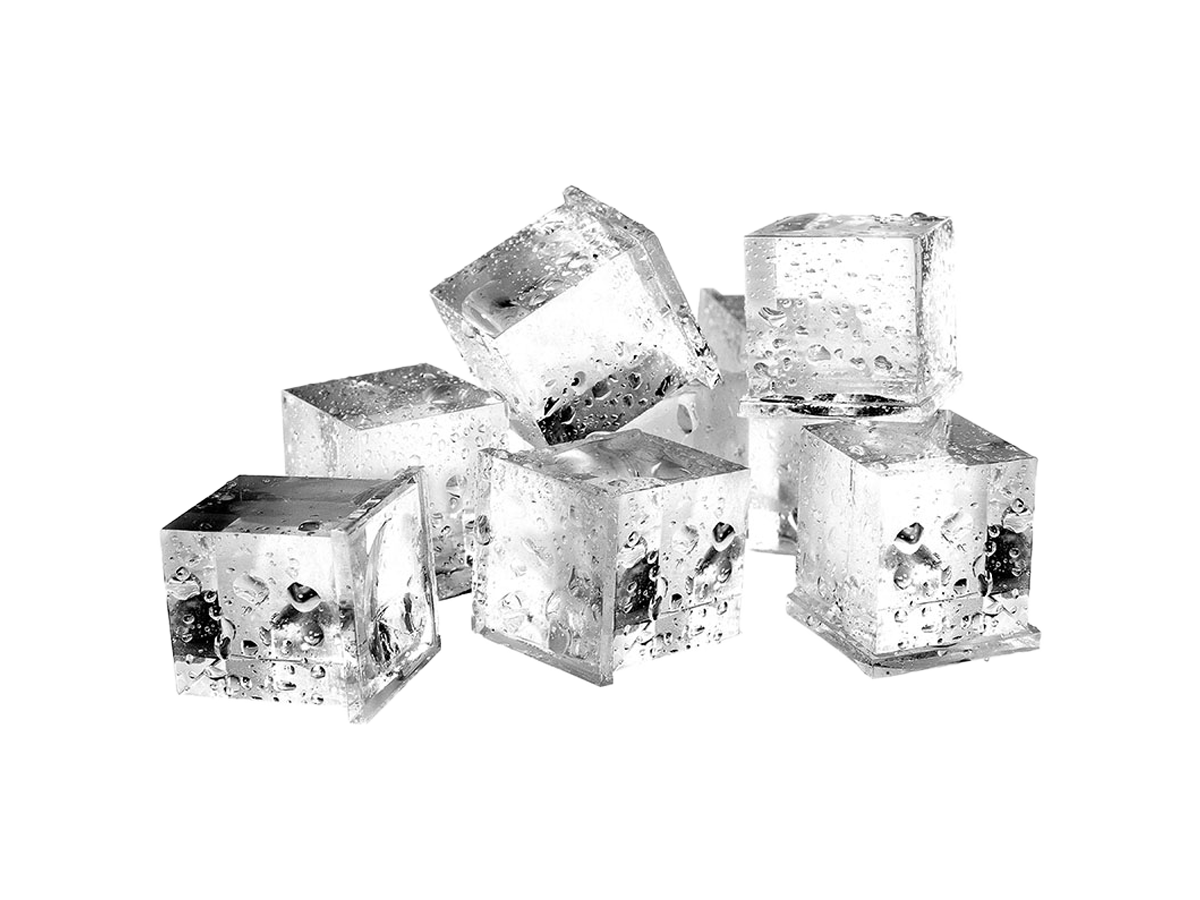

Dice Cube - 10g
22 x 22 x 22 mm

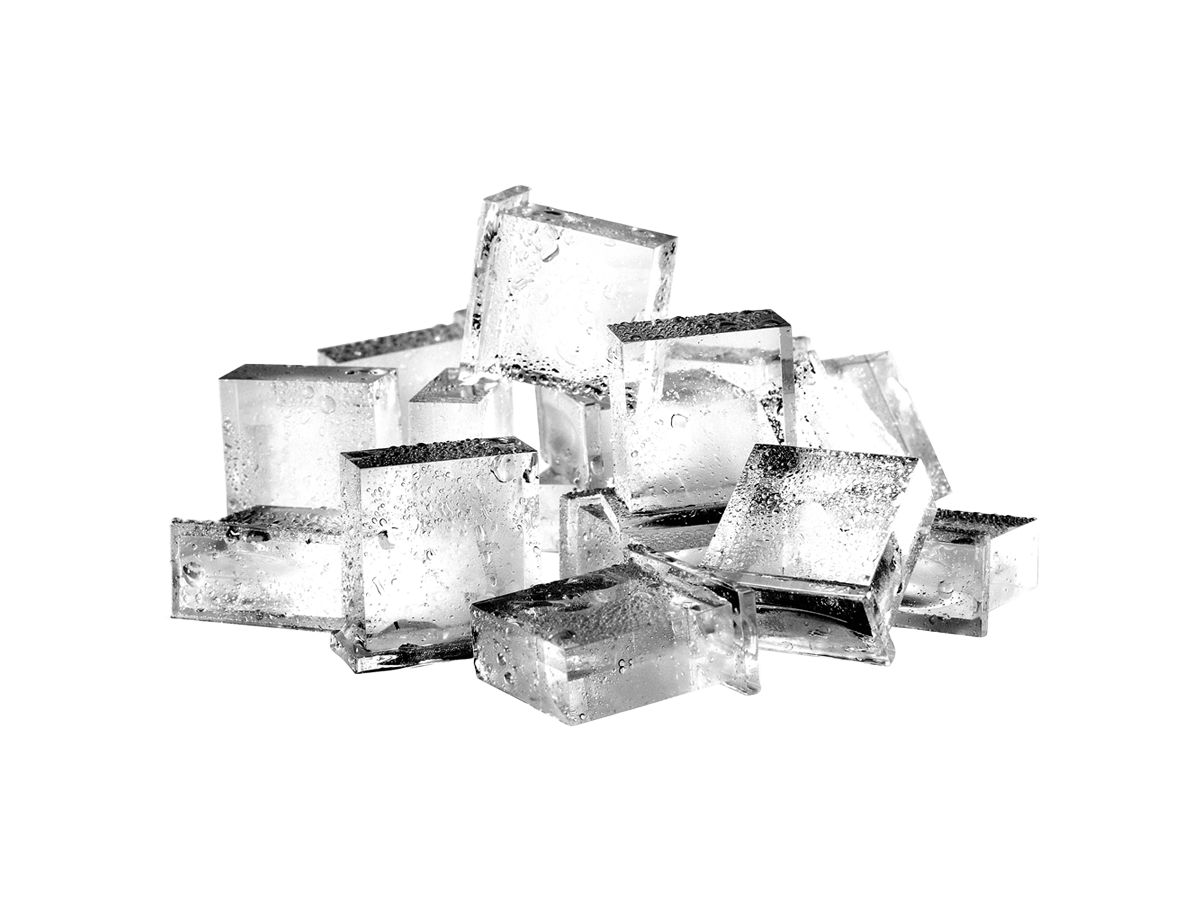

Half Dice Cube - 5g
10 x 22 x 22 mm
